APRIL GOLD-SILVER VEIN-KIT CARSON MINE MINERAL POTENTIAL

  • The April Vein is part of an extensive 6,000’ by 1,000’ vein system and is a continuation of documented high grade precious and base metal mineralization at the Kit Carson Mine (0.9-34 opt gold, 35-527 opt silver, 2-12% lead and up to 5% copper)
  • Significant soil geochemical GOLD and SILVER targets have been defined
  • Minimal exploration conducted on this vein system
  • Potential for high grade GOLD-SILVER mineralization similar to that at the Kit Carson Mine and for Butte-type bulk mineable mineralization at depth
s

April Vein

Click to enlarge
s

April Vein Compilation

Click to enlarge
s

April Vein Compilation

Click to enlarge

View looking south from the April Mine area up Lowland Creek. Photo was taken from the area of the April Vein MMI anomaly.

  Compilation April Vein

Compilation April Vein



Mobile Metal Ions ( MMI ) Soil Geochemical Survey Results
line

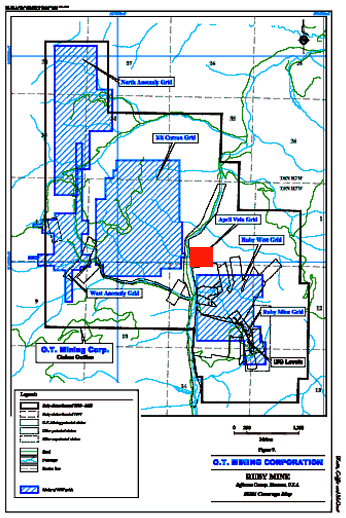

A complete coverage map detailing all MMI survey areas for the whole property MMI PDF

On the maps and bar charts high metal contents and areas of importance are in RED and YELLOW colors, low values are in black and purple. FLESH tones signify very high metal contents.

Soil samples collected at 50’ and 100' intervals.





Click to enlarge

Click to enlarge
April Vein



Click on the map thumbnails below to view a larger version or click the PDF icon to open a PDF map.

Click to enlarge

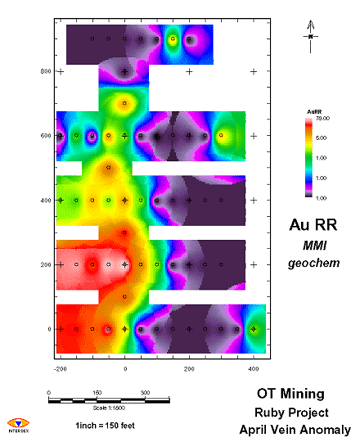

GOLD
line
Click to enlarge

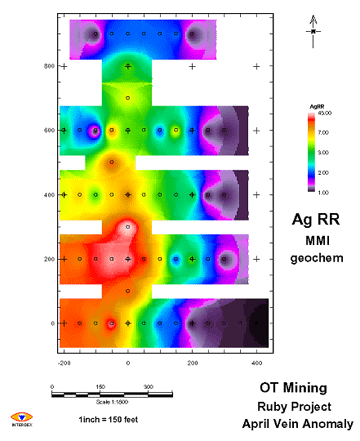

SILVER
line
Click to enlarge

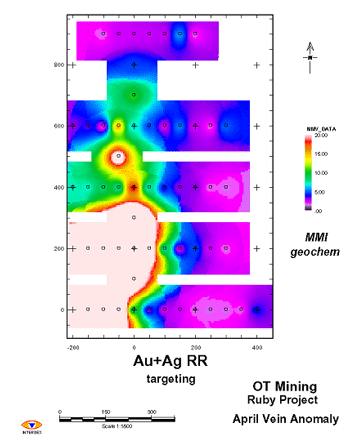

GOLD AND SILVER COMBINED

PDF

PDF
PDF
line line line
Click to enlarge

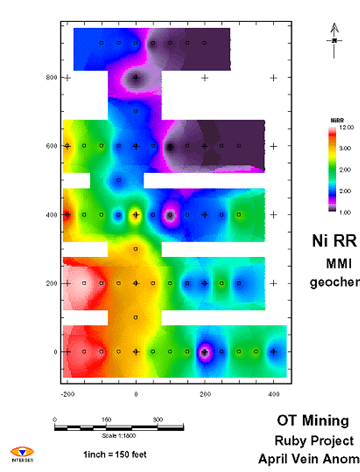

NICKEL
Click to enlarge

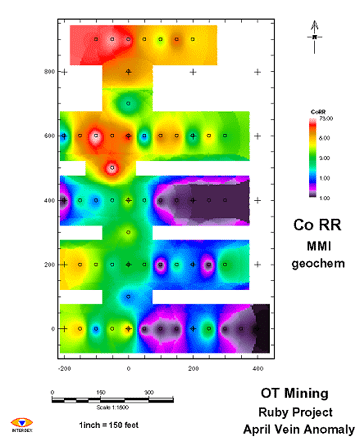

COBALT
Click to enlarge

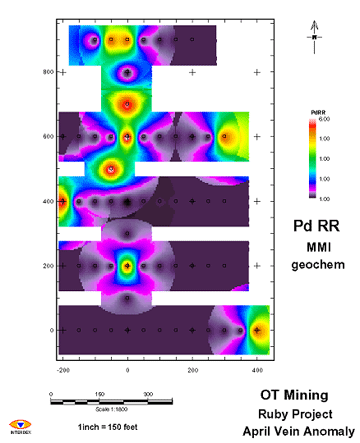

PALLADIUM
PDF
PDF
PDF
